Description

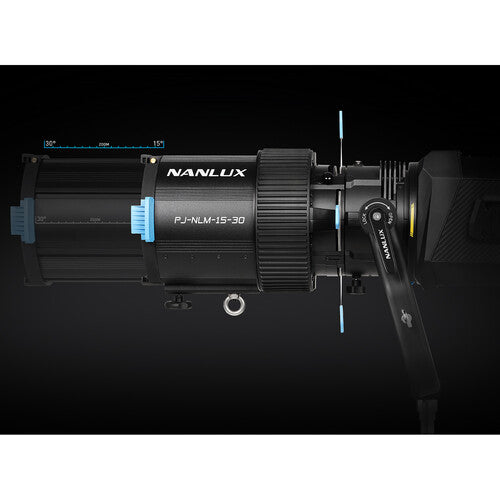

Take advantage of the flexibility the NL Mount Projection Attachment for Evoke Series from Nanlux will bring to your productions. Featuring zoom and focus compatibilities, this projection attachment enables maximum light-shaping control. Easily project a background image or achieve an increased output with your Evoke 900C, 1200, 1200B, or 2400B fixtures. Use the smooth zoom ring to create your desired focus with precision, cutting shutters, or an optional iris to shape the light. A supplied gobo holder allows you to attach one of the four included gobos to the projector to create different patterns. Users will also get a gel frame to add optional color gels. The projection attachment ships in a sturdy aluminum flight case that stands up to the rigors of traveling to and from the set.

Increased Output

When combined with the Evoke series of LEDs, this projection attachment can produce the brightest possible light from them. It dramatically increases the output of the 900C, 1200, 1200B, or 2400B lights you use it with. For example, the Evoke 900C is 7.4 times brighter than its bare light when this attachment is used. It reaches up to 32,720 lux at a distance of 9.8' (15°, 5600K).

Convenient 15-30° Zoom Range

An adjustable 15-30° zoom that extends or retracts allows for precise illumination control without physically moving the light.

Zoom Ring

A smooth zoom ring can be adjusted by rotation to project a focused light that can be defocused to suit the user's requirements.

Shape Your Light

Nanlux has developed this projection attachment as a meticulous optical system. Cutting shutters are independently adjustable for more precise control. An optional 18-blade iris lets you easily manipulate the beam output and create a flattering circular beam shape.

Aspherical Optical Design

Its aspheric lens with an optical coating can efficiently improve the light transmittance and bring 78% uniformity in the beam. It eliminates chromatic aberrations and minimizes distortion, while its optical coating also improves color temperature accuracy. The result is a well-controlled beam and minimized light loss.

90° Rotatable Lens Barrel

Easily adjust the beam angle with a 90° rotatable lens barrel without needing to move the shutter or the gobo.

NL Mount

Equipped with Nanlux's proprietary NL mount, the attachment can be securely mounted so your lighting requirements are met. Expand your lighting effects by combining it with optional reflectors.

Lens Compatibility

The PJ-NLM-15-30 is compatible with third-party barrels and lenses to elevate its potential.

Robust Construction, Heat Resistant

The attachment is made of aluminum alloy for durability. Nanlux keeps heat absorption to a minimum through the use of nylon-coated housing. Its passive cooling is a great asset for audio recording on set.

Integrated Yoke, Fast Setup

An integrated yoke and handles enable secure locking for a quick, uncomplicated setup. The mounted fixture will stay well-balanced to avoid any shift in your projection angle. The yoke's 15° offset design ensures maximum stability when mounted on an optional light stand.

Portability

The PJ-NLM-15-30 is designed to be rugged yet portable. The supplied flight case holds the attachment and all included accessories.

Additional Details

Edge-blackening for a better, sharp edge
Antireflective coating improves color accuracy
Includes front and back protective covers to prevent dust and scratches
Barrel and yoke eyebolts for attaching an optional safety cable
Fastening knob to prevent wobbling during downward projection
Sets of other A-size gobos are separately available
